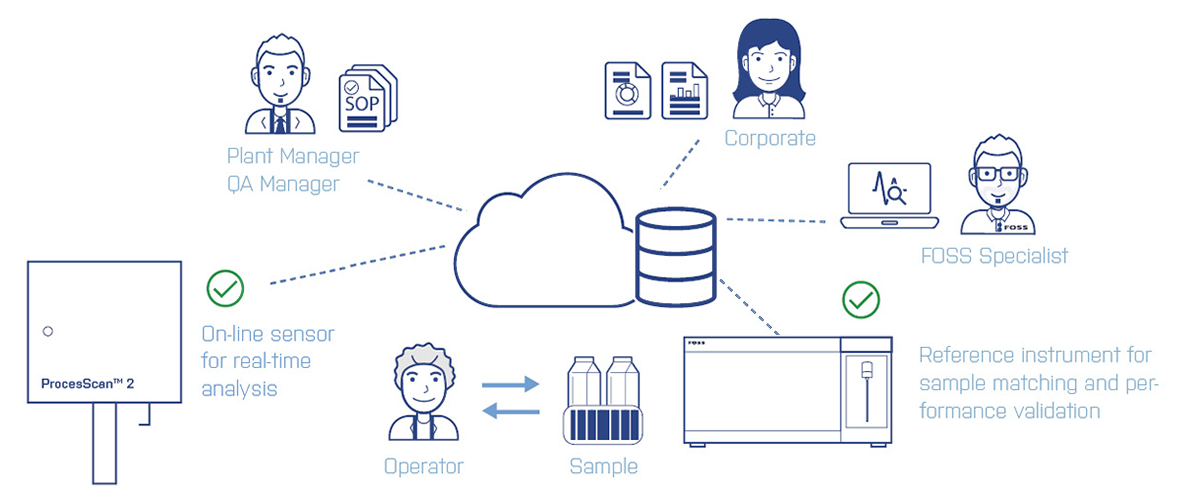

Hit your targets with continuous, real-time results. Benefit from predictable performance made easy and ensure efficient operations supported by connected services.

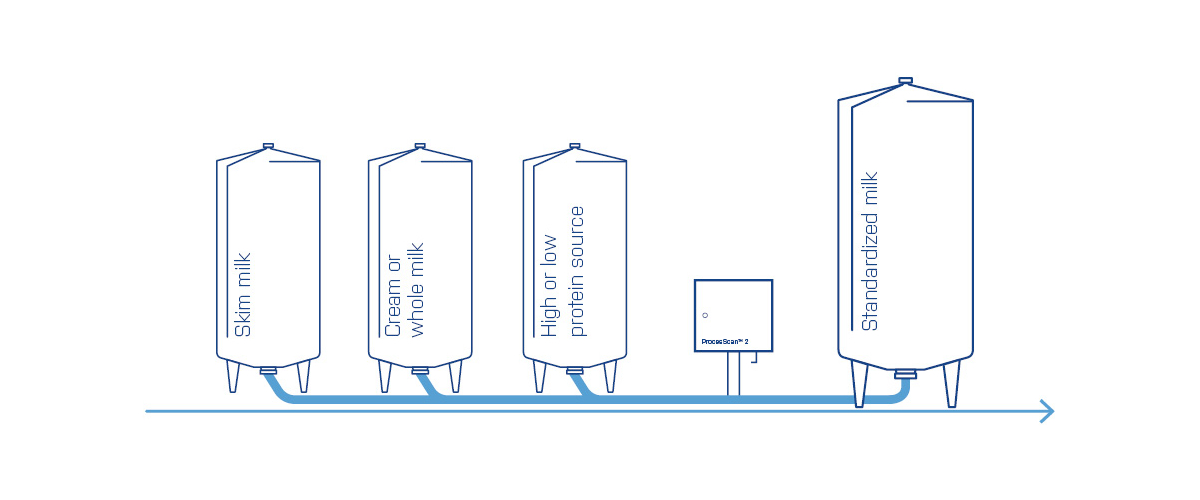

Milk and liquid dairy products.
Protein, fat, total solids, solids non fat (SNF), and lactose.

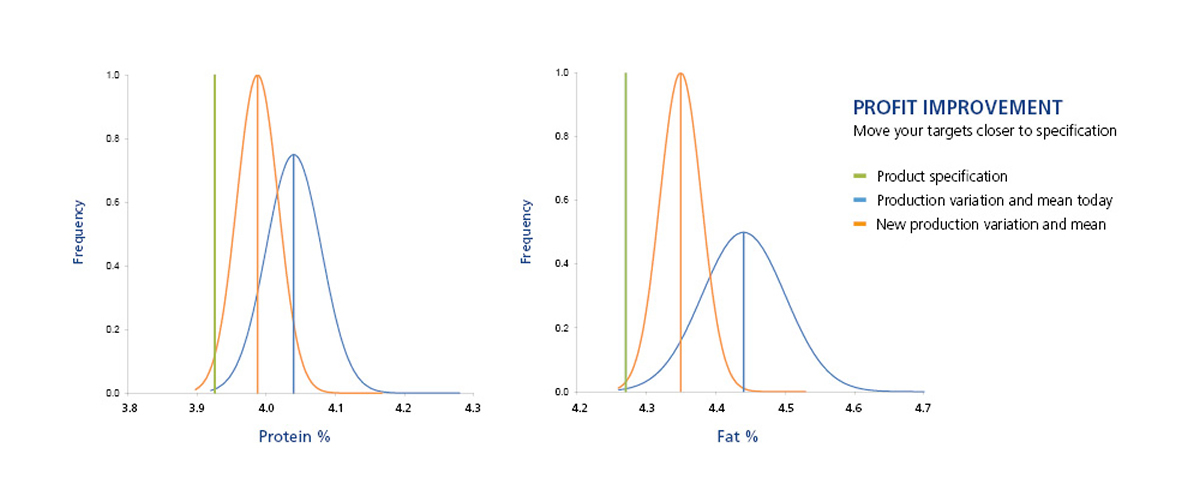

Get in touch with our specialists to discuss profit and quality improvement opportunities for your specific production.
Technical Specifications | ||||||
---|---|---|---|---|---|---|
Technology | Fourier transform infrared spectroscopy (FTIR) | |||||
Parameters | Fat, protein, lactose, total solids (TS), solids non fat (SNF) | |||||
Product types | Liquid milk for cheese, powder and consumer milk production, without solid particles or coagulated proteins in the product. Liquid dairy products with total solids concentration < 25% (WPC/MPC, high fat) |
|||||
Accuracy* | Fat (0-10 %) Fat (10-20 %) Protein (0-10 %) Protein (10-20 %) |
Guaranteed < 0.05 < 0.15 < 0.04 < 0.13 |
Typical |
Lactose (0-7 %) TS (8-20 %) TS (20-25 %) SNF (4-20 %) |
Guaranteed < 0.05 < 0.10 < 0.18 < 0.10 |
Typical 0.02 0.05 0.10 0.04 |
Repeatability** | Fat (0-10 %) Fat (10-20 %) Protein (0-10 %) Protein (10-20 %) |
Guaranteed < 0.015 < 0.045 < 0.015 < 0.034 |
Typical 0.007 0.022 0.006 0.022 |
Lactose (0-7 %) TS (8-20 %) TS (20-25 %) SNF (4-20 %) |
Guaranteed < 0.015 < 0.039 < 0.068 < 0.024 |
Typical 0.008 0.012 0.029 0.018 |
Result frequency | 10 seconds (20 seconds for high viscous products) | |||||
Technical specifications and installation requirements | ||||||
Protection degree | IP56 | |||||
CIP and CIP temperature | Fully CIP compatible. Temperature maximum 95°C (203°F) | |||||
Product temperature | 3-65° C (39-149° F) | |||||
Ambient conditions | Humidity: < 93% RH (45 °C). Temperature: 5-45°C (41-113°F) | |||||
Process pressure |
Maximum 10 bars (145 PSI) static. |
|||||
Production line dimension | Minimum DN 40, OD 1 1/2", IPS 2" and ISO 42.4. | |||||
Varinline access unit | Ø68 (type N) | |||||
Water supply, cooling | Minimum flow rate 0,1 L/min. Temperature: 2-20°C (35.6-68°F) | |||||
De-mineralized water (Zero water) | Consumption: 9 litre/day ISO 3696 grade 3 or ASTM D1193-91 type IV. Conductivity (µS/cm) <5.0. |
|||||
Main cabinet | 304 Stainless steel | |||||
Dimensions, cabinet (W x D x H) | 539 mm x 285 mm x 480 mm (21.1" x 11.2" x 18.9") | |||||
Weight, cabinet | 39.5 kg (87 lb) | |||||
Interface to PLC/SCADA | Standard OPC UA server with the possibility to define specific FOSS tags. Alternative KEPServerEX supporting connection to other PLC protocols. | |||||
Network connections | LAN cable: Minimum category 5e STP LAN plug: RJ45 Maximum LAN cable distance to the net connection: 100 meters |
|||||
Hygiene standards | 3-A Sanitary standard EHEDG Guideline: Guideline 8 on hygienic design principles |
